The ACR3901U-P6 has USB 2.0 Full Speed Interface and USB Type C Connector.

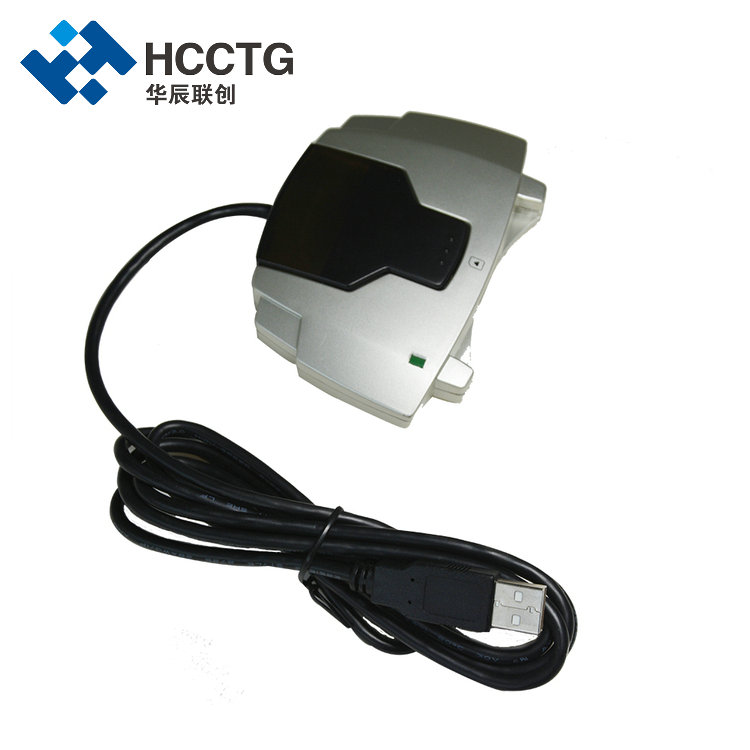

ISO7816 USB Full Speed Smart Card Reader With Free SDK ACR3901U-P6
Due to its design, the reader is also ideally suited to be bundled with smart cards and software to support large-scale projects rollouts. Typical applications areas of the ACR3901U-P6 are electronic ID, social security and loyalty programs, e-couponing, secure network log-on, e-banking as well as online shopping and gaming activities.
Features
Specification
|
Dimensions |
73.0 mm (L) x 96.5 mm (W) x 19.0 mm (H) |
|
Weight |
95 g (± 5 g allowance for cable) |
|
Color |
Silver |
|
Protocol |
USB CCID |
|
Connector Type |
Standard Type A |
|
Power Source |
From USB port |
|
Speed |
USB Full Speed (12Mbps);4 pins: +5 V, GND, D+ and D- |
|
Supply Voltage |
5 V |
|
Cable Length |
1.5 m (Fixed) |
|
Number of Slot |
1 Full-sized Card Slot + 1 SIM Card Slot |
|
Standard |
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
|
Protocol |
T=0; T=1; Memory Card Support |
|
Supply Current |
Max. 50mA |
|
Deck |
Landing Contact Socket |
|
Card Size |
ID-1 or ID-4 (for SIM) |
|
Firmware |
upgraded via USB interface |
|
Smart Card Read/Write Speed |
600,000bps |
|
Short Circuit Protection |
(+5) V/GND on all pins |
|
Clock Frequency |
4.8 MHz |
|
Card Connector Type |
Contact |
|
Card Insertion Cycles |
Min.200,000 |
|
LED |
Green |
|
PC-linked Mode |
PC/SC CT-API (through wrapper on top of PC/SC) |
|
Temperature |
0 °C – 60 °C |
|
Humidity |
Max. 90% (non-condensing) |
|
MTBF |
500,000 hrs |
|
Certifications/Compliance |
EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL |
|
Device Driver Operating System Support |
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 LINUX/MAC/ANDROID |
