*Highly automatic and user-friendly
*Suitable for producing melamine tableware, urea items etc.
*Highly automatic and user-friendly
*Suitable for producing melamine tableware, urea items etc.
Support Service :
Life-time ServiceTrainning Service :
YesMachine Weight :
4800KGMachine Dimension :

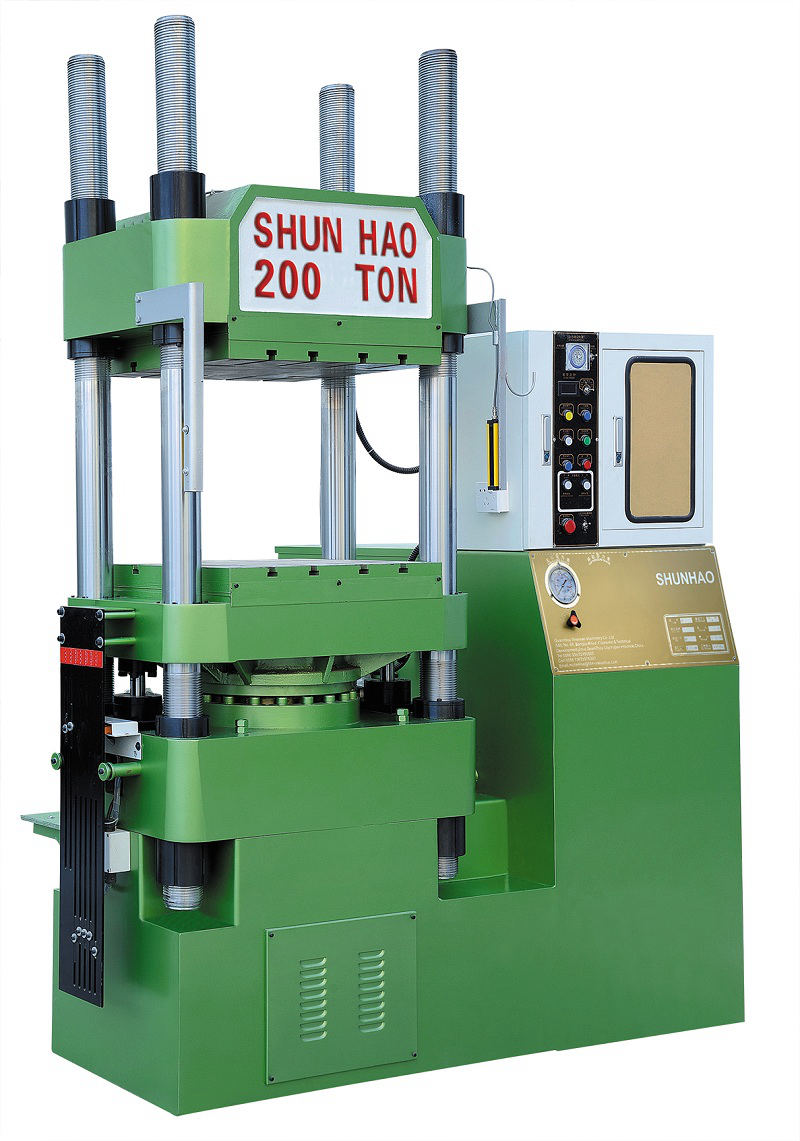

2.0*1.42*2.7 MAutomatic Single Color Melamine Tableware Molding Machine-DTB 150TONS/200TONS
Competitive Advantage
1. CE certification
2. Fully automatic, energy saving
3. Proprietary technology provides overseas technical support
4. High-quality thermoforming machine, which automatically completes forming, drying and pressing in one machine
5. With over 18 years of experience in tableware molding machine. Shunhao is a reliable supplier in China
Features
* Stable vertical pressure, the air release frequency is up to 99 times. Pressing time and air releasing time and air releasing distance can be freely set and adjusted.
* Pressing circulation system model is customized additionally. Operation by slow speed and high speed to close and open molds，which can protect the molds and save time.
* Easy and automatic operation, without noise.
* Suitable for production of melamine tableware, urea items, and rubber items.
Technical Parameters
|
No. |
Content |
DTB 200 |
|
1 |
Main Cylinder Nominal Pressure |
200Tons |
|
2 |
Maximum Working Pressure |
210kg/cm2 |
|
3 |
Main Cylinder Piston Diameter |
Ø370mm |
|
4 |
Main Cylinder Working Stroke |
560mm |
|
5 |
Adjustable Table Distance |
500~960mm |
|
6 |
Heating Plate Size |
680*620mm/720*720mm |
|
7 |
Working Layers |
1 layer |
|
8 |
Heating Plate Material |
45# |
|
9 |
Tension Column (Heat Treatment Grinding) |
Ø100*2200mm |
|
10 |
Oil Hydraulic Pump |
21Mpa |
|
11 |
Motor Specifications |
10HP |
|
12 |
Heating Sheet Total Power |
12.4KW |
|
13 |
Machine Total Power |
19.9KW |
|
14 |
Machine Size(length * width * height) |
2.0*1.42*2.7 M |
|
15 |
Machine Weight |
4800KGS |
■ PS: Specifications subject to change without notice.
