JNPD72 Photovoltaic DC Pump Controller

INTRODUCTION

Solar  pumping inverter obtains DC electric energy from the photovoltaic cell and converts it into electric energy

to drive the water pump. According to the intensity of sunlight, the inverter adopts MPPT algorithm to adjust the

output frequency and make maximum use of solar energy.
This series solar  pumping inverter is a flexible, easy-to use and economical solar  pumping inverter launched

by Days energy according to the differentiated needs of customers. It aims to provide customers with economic

and comprehensive economic benefit solutions.



Product Details

System application:

BLDC Solar Pump Solution is mainly used in the fields of daily life water, agricultural and forestry irrigation, desert management, livestock water, village and town water supply, sewage treatment engineering and fountain landscape.


BLDC solar pump controller

Core advantage

1.Solar panel:25 years design life
2.Pump & controller:5 years design life
3.High quality materials:stainless steel
4.IP65 protection level
5.Easy to maintain, low cost
6.Working temp. -15 ℃~ + 60 ℃.


System application:

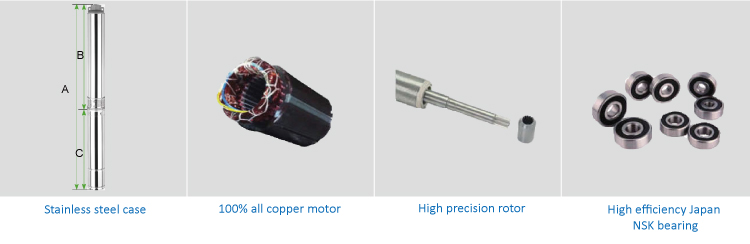

Main components of the system(Solar pump & controller)


Stainless steel case
Stainless steel case, strong and durable, safe and reliable, noteasy to rust.
100% all copper motor
All copper motor, with over current protection device,pump overload, such as a case of automatic stop.
High precision rotor
Precision machining, higher effiffifficiency, stable operation,longer life.
High effiffifficiency Japan NSK bearing
Run silent and smooth, high load, lubricating oil, long life

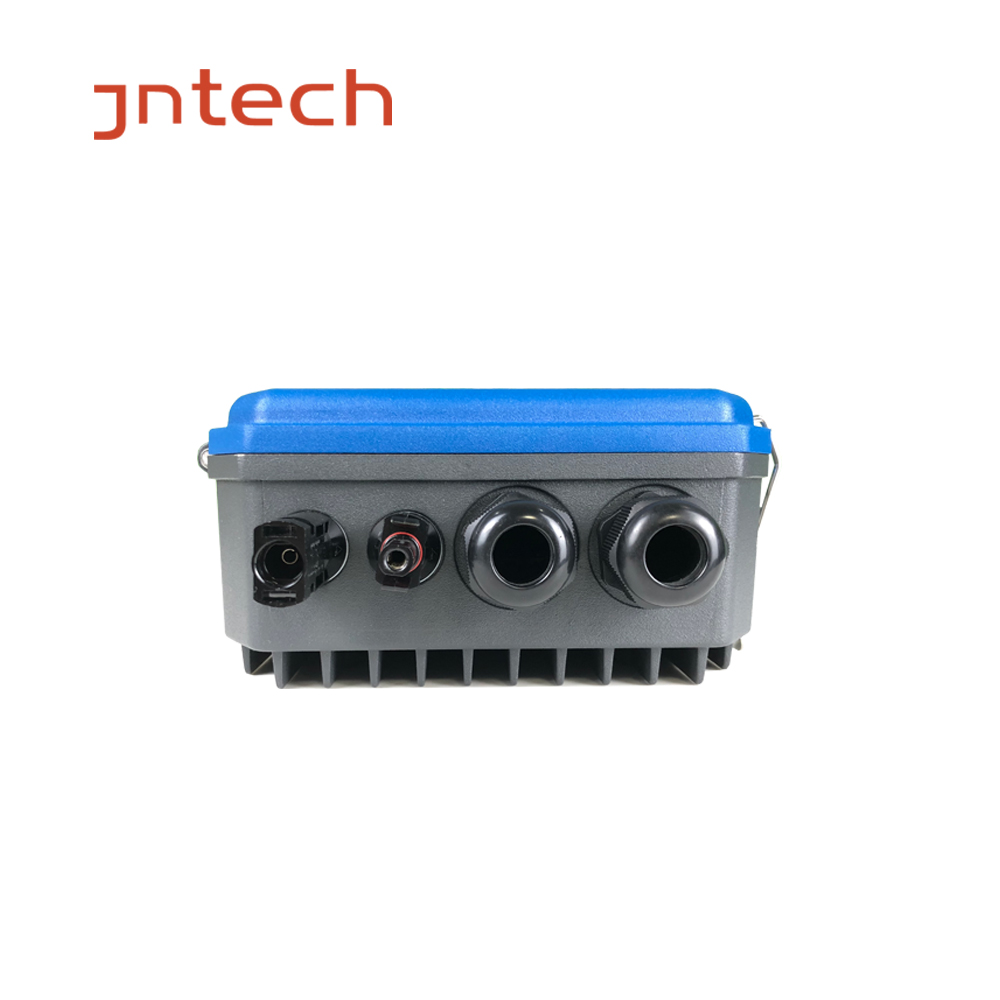

Controller

Using range
Installation: The controller should be installed in well ventilated place to facilitate heat dissipation.
The working environment: -15 ℃~ + 60 ℃.
Adapter pumps: brushless BLDC pump.
Power range
For maximum input power of 1500W water pump.
Three.Operation panel.

BLDC solar pump controller parameter
Model
JNPD12
JNPD24
JNPD36
JNPD48
JNPD72
JNPD110
PV input




D.C. Max. Input Voltage
48V
48V
48V
96V
150V
180V
Recommended MPPT Voltage
30~48V
30~48V
30~48V
60~90V
90~120V
110~150V
D.C. Max. Input Current
15A
15A
15A
15A
15A
15A
Max. MPPT Effiffifficiency
>99%
>99%
>99%
>99%
>99%
>99%
Number of String
1 1 1 1 1 1
A.C. Output






Max. Motor Output Power
80W 120W 300W 750W 1100W 1300W
System






Protection Level
IP65
IP65
IP65
IP65
IP65
IP65
Operating Temperature
-15~60℃
-15~60℃
-15~60℃
-15~60℃
-15~60℃
-15~60℃
Cooling Way
Nature cooling
Nature cooling
Nature cooling
Nature cooling
Nature cooling
Nature cooling
Display
LED
LED
LED
LED
LED
LED
Altitude
2000m, above 2000m need derate operating
2000m, above 2000m need derate operating
2000m, above 2000m need derate operating
2000m, above 2000m need derate operating
2000m, above 2000m need derate operating
2000m, above 2000m need derate operating
Noise Emission
<50dB
<50dB
<50dB
<50dB
<50dB
<50dB
Compliance
EN 50178; IEC/EN 62109-1;IEC61800
EN 50178; IEC/EN 62109-1;IEC61800
EN 50178; IEC/EN 62109-1;IEC61800
EN 50178; IEC/EN 62109-1;IEC61800
EN 50178; IEC/EN 62109-1;IEC61800
EN 50178; IEC/EN 62109-1;IEC61800
Dimension(W/H/D)
600/180/115(mm)
600/180/115(mm)
600/180/115(mm)
600/180/115(mm)
600/180/115(mm)
600/180/115(mm)
Weight
8kg
8kg
8kg
8kg
8kg
8kg
