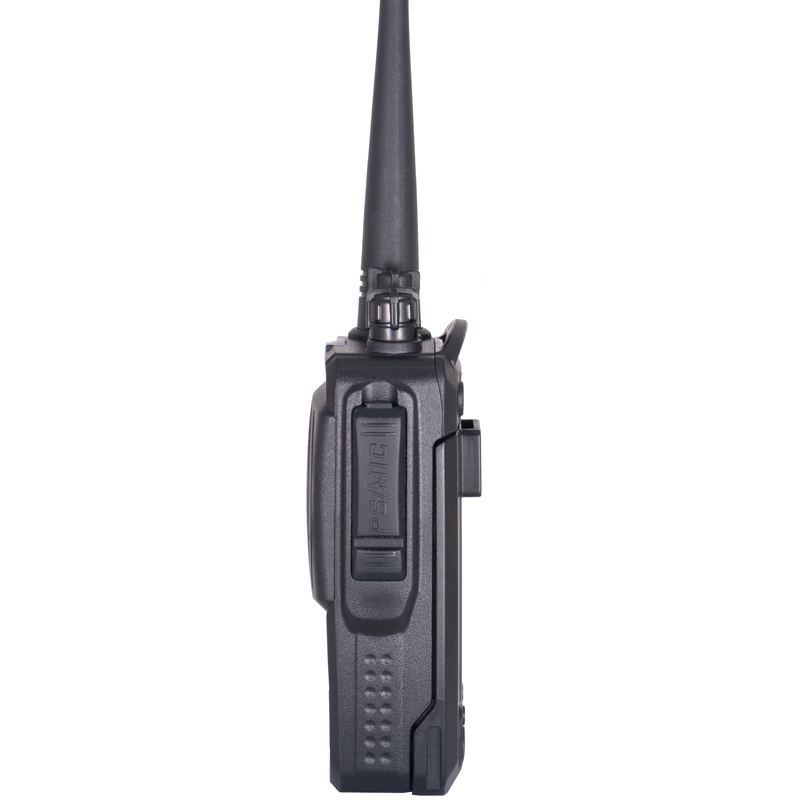

Mini Portable 3W VHF UHF Two-way Radio
T-320,3W Two-way Radio Systems, with innovative LCD design, wide band coverage, change frequency by keypad and clear audio quality, which makes it ideal for most commercial applications.
Quick Details
1.Output Power:3W
2.Frequency Range: 136-174MHz/400-480MHz
3.199 Memory Channels
4.Scan
5.PC Software Programmable,Manual Programming,Wire Copy
6.VOX Function
7.CTCSS/DCS
8.Monitor, Reverse Frequency
9.Power Saving Function, Low Power Warning
10.High/Low Power Selective
11.Emergency Alarm
12.Whispering Function
13.Busy Channel Lock
14.Transmitter Time-out Timer(TOT)
15.Side Key Assignment
16.0-9 Grades Squelch Level Setting
17.Group Calls
18.Calling Remind
19.LCD Display
20.Chinese and English Voice Prompt
21.FM Radio (87.5-108MHz)
22.1200mAH Li-ion Battery
Specification
|
GENERAL |
|
|
Frequency Range |
136-174MHz/400-480MHz |
|
Operating Temperature |
-20℃to +55℃ |
|
Frequency Combination |
please lock frequency synthesize |
|
Frequency Stability |
±2.5ppm |
|
Memory Channel |
199 |
|
Working voltage |
3.7V |
|
Antenna Impedance |
50Ω |
|
Operating Mode |
simplex of co-frequency or alien |
|
Dimensions |
85*38*25mm |
|
Weight |
232g |
|
TRANSMIT PART |
|
|
RF power |
3W |
|
Modulate Mode |
F3E |
|
Max.Freq.Deviation |
≤5KHz |
|
Remain Wave Radiation |
＜-60dB |
|
Transmitting Current |
≤1000mA |
|
RECEIVER PART |
|
|
Sensitivity |
＜0.20uV (12dB SINAD) |
|
Squeich Sensitivity |
＜0.20uV |
|
Intermodulation Antijamming |
50dB |
|
Audio Power output |
500mW |
|
Receiving Current |
≤100mA |
|
Squelch Stangby |
20mA |
3W Two-way Radio Systems
