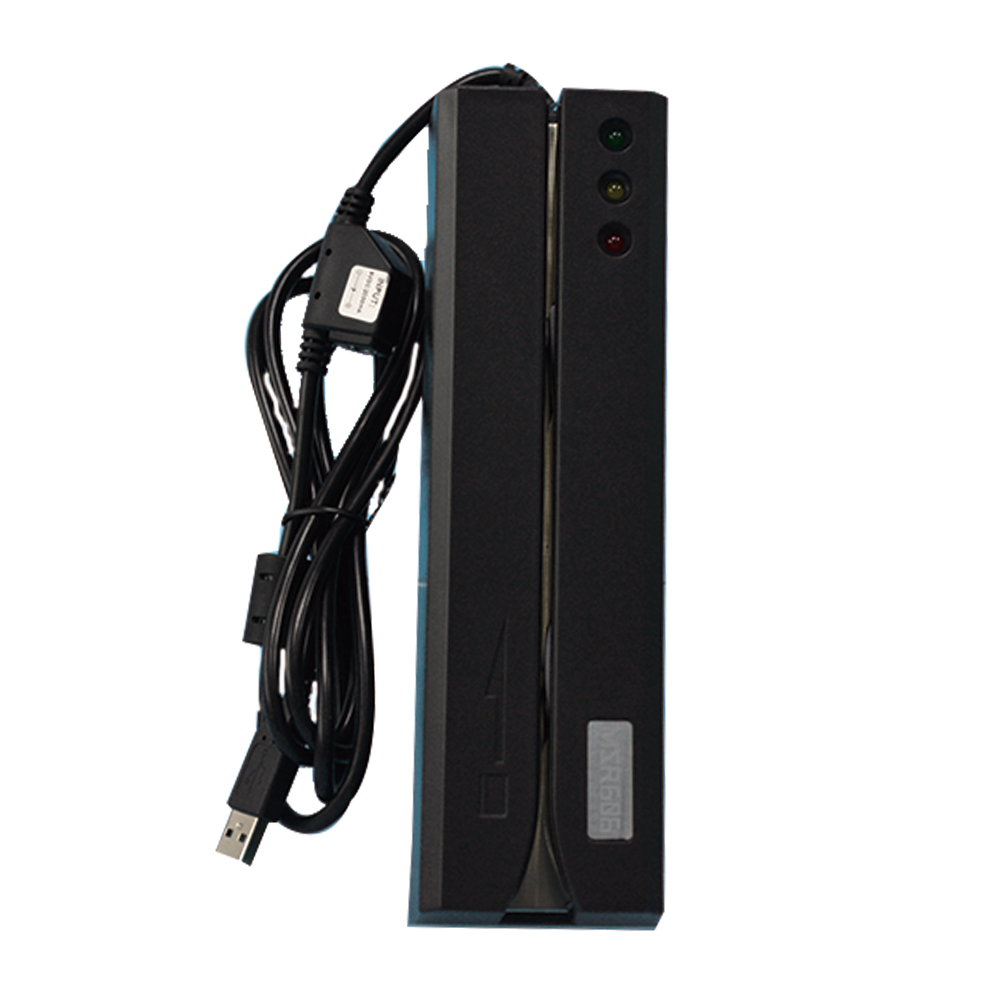

CE ROHS Bank Card Reader Writer Magnetic Stripe Card Reader MSR606
MSR606 is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR606 reader/writer.
The MSR606 is designed to offer a reading and writing solution for high and/or low COERCIVITY cards that will attractively complement an existing system.
Feature
Specification
|
Power Reference |
|||
|
Power requirements |
+24VDC +/- 5% |
||
|
Consumption |
Typical 350mA Max. 600mA plus for each writing track |
||
|
Power supply |
External switching power 24V/2.5A |
||
|
Interface |
Serial interface or USB |
||
|
Ripple |
50mVp-p or less |
||
|
Dielectric strength |
500 VDC for 1 minute |
||
|
Performance |
|||
|
Read card |
Track1 |
Track2 |
Track3 |
|
Bit per density |
210 bpi |
75/210bpi |
210 bpi |
|
Coercive force |
Read/write 300-4000 OEmagnetic card |
||
|
Card thickness |
0.76-1.2mm |
||
|
Read speed |
STD card |
Jitter +/-15% |
Amp. 60% |
|
|
5-55ips |
5-50ips |
5-50ips |
|
Write speed |
5-30ips |
||
|
Write jitter |
Interval < +/- 10%, Sub-interval < +/- 12% |
||
|
Error rate |
Read < 0.5% |
||
|
|
Write < 0.8% |
||
|
Head life |
Min. 1000K swipes for both read/write head |
||
|
Physics |
|||
|
Body material |
ABS 94V-0 |
||
|
Weight |
Approx. 1.4kg |
||
|
Dimension |
212L x 64W x 63H mm |
||
|
Swipe |
Manual, single direction |
||
|
Environment |
|||
|
Operation |
-10 to 55oC, 10 to 85% humidity |
||
|
Storage |
-30 to 70oC, 10 to 90% humidity |
||
|
Safety Approval |
|||
|
Certificate |
FCC , CE , UL,CUL，ROHS |
||
