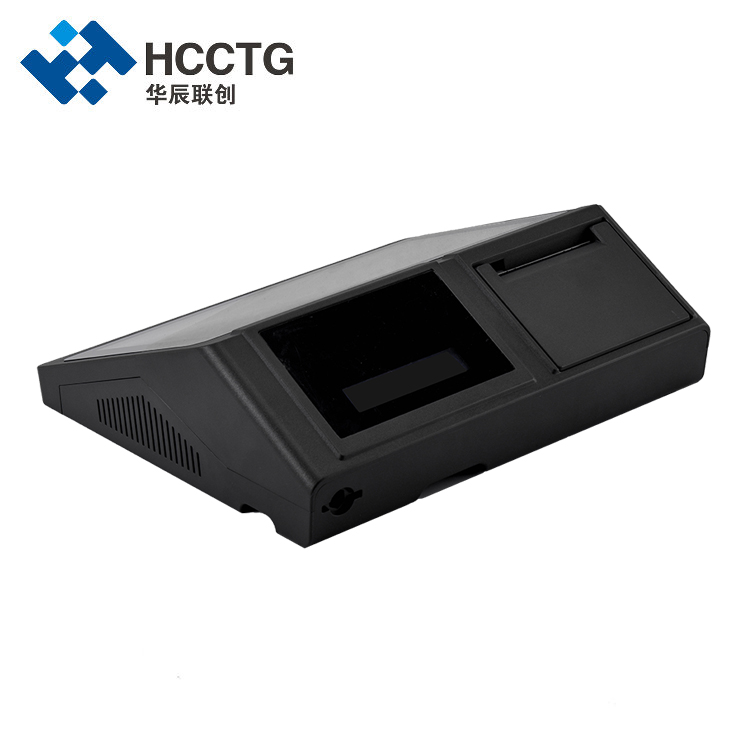

11.6 Inch All In One Windows Retail POS With 58mm Thermal Printer HCC-T2180
HCC-T2180 comes with a 11.6 inch TFT-LCD capacitive touch screen display, industrial level thermal printer and NFC (Optional) flexible configuration.
Empowered by Intel Bay-trail J1900 Quad Core CPU and massive memory, HCC-T2180 enables exceptionally fast processing of applications, and supports additional features for local customization including NFC and Dallas Key. It is your smart choice for one-stop payment and service.
Features
Application
Specifications
|
CPU |
Intel Bay-trail J1900 Quad Core |
|
RAM |
4/8G |
|
Storage |
64/128/256G |
|
Network |
Ethernet: 1*Realtek 1Gbps PCIe Ethernet Controller, RJ45 |
|
Main Display |
11.6 inch 1920*1080 TFT-LCD EDP |
|
Touch Screen |
Capacitive |
|
Speaker |
Built-in 2W |
|
Customer Display |
LCD 2 x 20 |
|
I/O |
USB x 4, RS232 x 1, RJ45 x 1, VGA x 1, Mic x 1, Audio x 1 |
|
Power Adapter |
12V 7A |
|
80mm Printer |
Printing method: Direct thermal
Resolution: 8 dots/mm Printing speed: Max.260mm/s
Printing width: 72mm Max diameter: 60mm
Cutter: Auto-cutter |
|
58mm Printer (Optional) |
Printing method: Direct thermal Printing speed: Max. 90mm/s
Printing width: 48mm Max diameter: 50mm Cutter: Manual |
|
Optional |
NFC; Dallas Key; 8 LED, 5 inch customer display Battery: 12V rechargeable |
|
Dimension |
310x299.8x102.4mm(L x W x H) |
|
Environment |
Working temperature: -10℃-40℃ Storage temperature: -20℃-55℃Humidity: 20%-90% RH |
