USB 2.0 Full Speed Interface
USB Type C Connector
Plug and Play – CCID support brings utmost mobility
Smart Card Reader
USB 2.0 Full Speed Interface
USB Type C Connector
Plug and Play – CCID support brings utmost mobility
Smart Card Reader

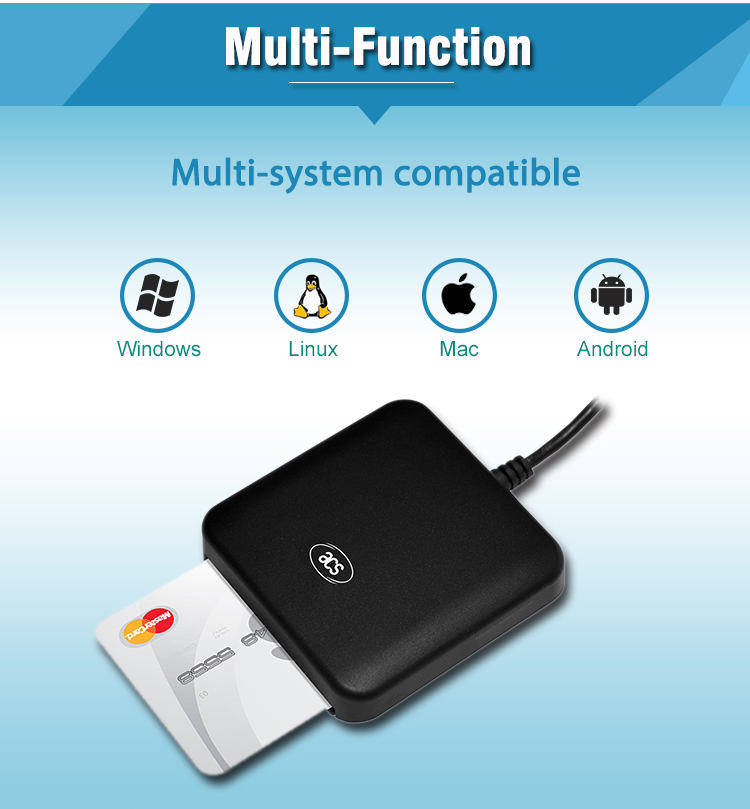

Contact USB Interface Smart Card Reader
The ACR39U-U1 hails new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card–based applications.
Specification
|
Dimensions |
72.2 mm (L) × 69.0 mm (W) × 14.5 mm (H) |
|
Weight |
60g |
|
Color |
Black (Matte) |
|
Protocol |
USB CCID |
|
Connector Type |
Standard Type A |
|
Power Source |
From USB port |
|
Speed |
USB Full Speed (12 Mbps) |
|
Supply Voltage |
5 V |
|
Cable Length |
1.5 m (Fixed) |
|
Number of Slot |
1 Full-sized Card Slot |
|
Standard |
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
|
Protocol |
T=0; T=1; Memory Card Support |
|
Supply Current |
Max. 50mA |
|
Smart Card Read/Write Speed |
9.6 Kbps – 600 Kbps |
|
Short Circuit Protection |
(+5) V/GND on all pins |
|
Clock Frequency |
4.8 MHz |
|
Card Connector Type |
Contact |
|
Card Insertion Cycles |
Min.100,000 |
|
LED |
Green |
|
PC-linked Mode |
PC/SC CT-API (through wrapper on top of PC/SC) |
|
Temperature |
0°C – 60°C |
|
Humidity |
Max. 90% (non-condensing) |
|
MTBF |
500,000 hrs |
|
Certifications/Compliance
|
EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL |
|
Device Driver Operating System Support
|
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 LINUX/MAC/ANDROID |
