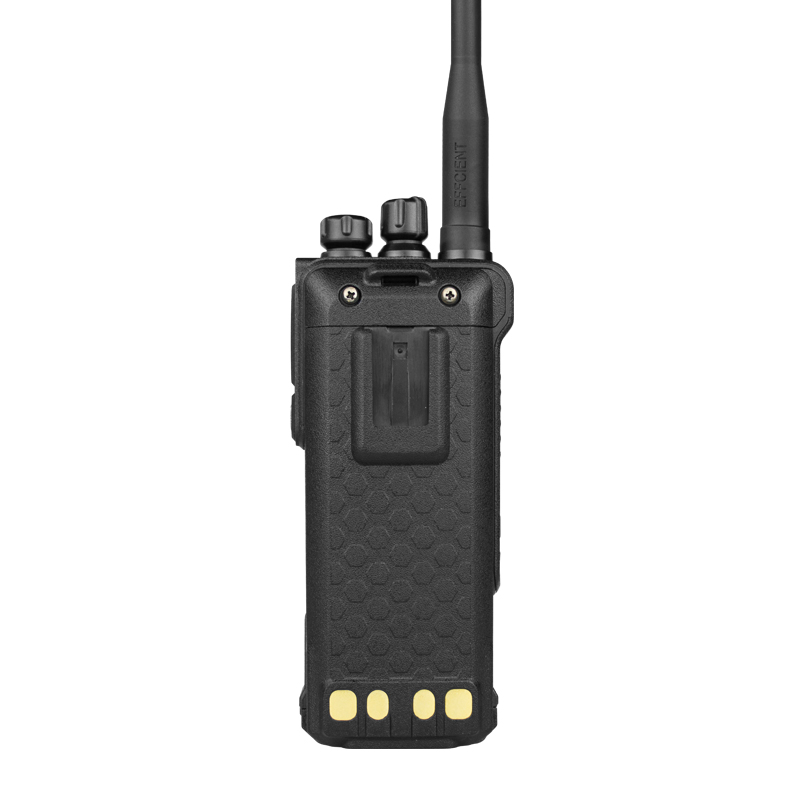

Product Name: UHF VHF 10W Handheld Two Way Radio
Product Features
1. Output Power: 10W(H) 5W(M) 2W(L)
2. Battery Capacity: 3000mAh (Li-polymer battery)
3. Hidden LCD Display
4. Scan Function
5. VOX Function
6. Wide/Narrow Band 25KHz/12.5KHz
7. Emergency Alarm
8. Battery Saver
9. Low Battery Warning
10. Scrambler Function
11. channel Lock Out
12. TOT Function
13. CTCSS/DCS
14. Squelch Level Adjust
SenHaiX is professional manufacturer engaged in the research, development, production, sale and service of professional dual band two way radio. We have developed a full range of SenHaiX BRAND series two-way radios.
Technical Specifications
| General | |
| Model No. | GT-10 |
| Dimension | 65x46x140mm |
| Weight | 360g |
| Frequency Range | UHF 400-470MHz |
| VHF 136-174MHz | |
| Channel Capacity | 199CH |
| Channel Spacing | 12.5KHz/25KHz |
| Operating Voltage | 7.4V-8.4V DC |
| Battery Capacity | 3000mAh (Li-polymer) |
| Operating Temperature | -20℃ to +50 ℃ |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Transmitter | |
| Output Power | H:10Watts M:5Watts L:2watts |
| Modulation Type | 16kφF3E(Wide Band) |
| 11kφF3E(Narrow Band) | |
| MAX. Frequency Deviation | <5KHZ(Wind Band) |
| <2.5KHZ(Narrow Band) | |
| Adjacent Channel Power | ≥60dBTransmitter |
| S/N | ≥45dB |
| Audio Distortion | ≤3% |
| Audio Response | 6dB/Each octave |
| FM | ≤-36dB |
| Receiver | |
| Sensitivity | ≤0.25V |
| Spurious Rejection | ≥80dB |
| Audio Response | 6dB/Each octave |
| S/N | ≥50dB |
| Rated Output Power | ≤2% |
| Audio Output Level | 22dBMW(10%hours) |
